08 — Consolidated Results

This report consolidates every experiment in the repo into one place: the full method matrix on the canonical problem, the variable-coefficient Jacobi study, wall-time accounting, the cross-method spectral comparison, and an honest reckoning of what won, what lost, and why. Every number below is read directly from results/results.json, results/nystrom.json, results/npo_eval.json, results/npo_spectrum.json, results/spectra.json, and results/baseline.json, all produced by the scripts described in 01-code-walkthrough.md. The single consolidated driver is python/experiments/run_all.py; its outputs were verified to be bit-consistent with the earlier per-experiment JSONs — every field they share (iteration counts, final residuals, relative errors vs spsolve, Nyström κ values) agrees exactly, as forced by the deterministic seeds; no reruns needed.

1. Experimental setup

All canonical-problem runs share one configuration (recorded in results.json → config):

item value
operator $A$ poisson_2d(32): 5-point Dirichlet Laplacian, $A = (\mathrm{kron}(d_1,I)+\mathrm{kron}(I,d_1))/h^2$, $h = 1/33$, $N = 1024$ (python/poisson.py lines 43–68; see 02-eigenvalues.md)
right-hand side $b$ grf_rhs(32, alpha=2.0, tau=3.0, seed=42) — standardized Gaussian random field, Matérn-like spectrum $(\vert k\vert ^2+\tau^2)^{-\alpha/2}$ (python/poisson.py lines 131–184; see 03-gaussian-random-fields.md). Seed 42 is held out from the NPO training seeds 100–139.
tolerance stop when $\Vert r_k\Vert /\Vert b\Vert \le 10^{-10}$
max iterations 2000
Nyström sketch seed 0
solvers pcg (Hestenes–Stiefel, Fletcher–Reeves $\beta$) and flexible_pcg (Notay 2000, Polak–Ribière $\beta$), python/pcg.py lines 15–81 and 84–141; see 04-krylov-and-pcg.md
iteration counting iterations = len(res_hist) - 1; res_hist[0] = 1.0 by convention (python/pcg.py lines 48–52)
reference solution scipy.sparse.linalg.spsolve(A.tocsc(), b); every converged run is checked against it
timing protocol wall_time_s is the solve loop only; setup_time_s is preconditioner construction, timed separately (python/experiments/run_all.py lines 82–94, 120–144)

The variable-coefficient runs use variable_poisson_2d(32, contrast=100.0) — a harmonic-mean finite-volume discretization of $-\nabla!\cdot(a\nabla u)$ with $a = 1$ for $x < 0.5$ and $a = 100$ for $x \ge 0.5$ (python/poisson.py lines 71–128) — with the same GRF right-hand side.

2. The full method matrix

2.1 Canonical problem: poisson_2d(32), GRF RHS, tol $10^{-10}$

From results.json → canonical:

method iterations final relres solve wall [s] setup [s] relerr vs spsolve converged
CG (none) 116 6.667e-11 0.00117 — 5.40e-12 yes
CG (Jacobi) 116 6.667e-11 0.00119 ~0 5.40e-12 yes
CG (ILU, spilu defaults) 5 6.212e-13 0.000236 0.000996 8.17e-14 yes
CG (Nyström, rank 16) 123 9.518e-11 0.00184 0.000737 1.53e-11 yes
CG (Nyström, rank 64) 123 8.005e-11 0.00188 0.00418 9.76e-12 yes
CG (Nyström, rank 128) 122 7.727e-11 0.00200 0.0116 6.97e-12 yes
CG (Nyström, rank 256) 119 9.183e-11 0.00233 0.0238 2.54e-11 yes
FCG (NPO, Notay flexible) 30 7.162e-11 0.0277 0.00272 3.10e-11 yes
CG (NPO, plain PCG) 2000 9.653e-06 1.68 0.00272 6.65e-06 no

All methods, canonical problem

The figure (x-axis clipped at 200 iterations for readability; the plain-PCG NPO curve continues stalling to 2000) shows the four qualitative regimes at a glance:

  1. ILU drops nearly vertically — 5 iterations. spilu with default parameters on this small, well-structured matrix produces a nearly exact factorization, so each preconditioned residual is close to the true error and CG converges almost immediately.
  2. CG(none), CG(Jacobi), and all four Nyström ranks form a tight bundle around 116–123 iterations — the Nyström curves sit marginally right of plain CG (Section 5.2 explains why).
  3. FCG(NPO) cuts through the bundle at a visibly steeper slope: 30 iterations, a 3.87× iteration reduction over plain CG (npo_eval.json → speedup_fcg_vs_cg = 3.8666…).
  4. CG(NPO, plain) decays for a while, then flattens near $10^{-5}$ and never recovers — the deliberate negative control (Section 6, anomaly 3).

Two smaller per-experiment figures show the same runs in isolation:

Baseline: CG none vs Jacobi

NPO: FCG vs plain PCG vs CG

Note the baseline figure: the CG(none) and CG(Jacobi) curves are exactly superimposed. This is a theorem, not a coincidence — diag(A) is the constant $4/h^2 = 4356$ for the constant-coefficient Dirichlet Laplacian, so Jacobi preconditioning is $M = (h^2/4)I$, a positive scalar multiple of the identity, and PCG iterates are invariant to positive scaling of $M$ (the scalar cancels between $\alpha = r^\top z / p^\top A p$ and $\beta = r_{k+1}^\top z_{k+1} / r_k^\top z_k$). baseline.json records the max deviation between the two residual histories as 4.441e-16 — one ulp of 1.0. This is sanity check #1 below.

2.2 Variable-coefficient problem: variable_poisson_2d(32, contrast=100)

From results.json → variable:

method iterations final relres solve wall [s] relerr vs spsolve
CG (none) 771 8.979e-11 0.00742 4.52e-12
CG (Jacobi) 137 9.219e-11 0.00144 1.12e-12

Here Jacobi is worth 5.6× in iterations (771 → 137) and 5.1× in wall time. The mechanism: with $a$ jumping from 1 to 100 across $x=0.5$, diag(A) ranges from $(w_{i-1/2}+w_{i+1/2}+2a_i)/h^2 = 4/h^2 = 4356$ in the $a{=}1$ half to $400/h^2 = 435{,}600$ in the $a{=}100$ half — a factor-100 diagonal spread (compute directly from python/poisson.py lines 110–127 with $1/h^2 = 1089$). Plain CG must resolve this two-scale spectrum by brute Krylov force; Jacobi rescales both material regions to a common diagonal and recovers near-constant-coefficient behavior (137 iterations, close to the canonical problem’s 116). This is the textbook statement “Jacobi ≈ free and worthless on constant-coefficient problems, cheap and genuinely useful when the diagonal varies” — measured rather than asserted. See 05-classical-preconditioners.md for the operator-level discussion.

No dedicated convergence figure is produced for the variable problem (run_all.py plots only the canonical panel); the iteration counts and JSON records are the artifact.

3. Wall-time discussion

3.1 Per-iteration cost decomposition

Dividing solve wall time by iterations (both from results.json):

method µs / iteration dominant per-iteration work
CG (none) 10.1 one 5-point sparse matvec (~5 flops/row) + 3 axpys + 2 dots
CG (Jacobi) 10.3 + one elementwise multiply
CG (ILU) 47.2 + two sparse triangular solves (sequential, cache-unfriendly)
CG (Nyström 16) 14.9 + $U(d\odot U^\top r)$: two $1024\times16$ GEMVs
CG (Nyström 64) 15.3 two $1024\times64$ GEMVs
CG (Nyström 128) 16.4 two $1024\times128$ GEMVs
CG (Nyström 256) 19.6 two $1024\times256$ GEMVs
FCG (NPO) 922 one full NAMG transformer forward (50,465 params, attention over 1024 tokens) on CPU
CG (NPO, plain) 838 same forward; slightly cheaper loop (no $r_{k+1}-r_k$ vector)

Three observations:

3.2 Total time to solution (setup + solve)

method total [s] note
CG (none) 0.00117
CG (Jacobi) 0.00119
CG (ILU) 0.00123 0.000996 setup + 0.000236 solve — ties plain CG despite 5 vs 116 iterations
CG (Nyström 16) 0.00257
CG (Nyström 64) 0.00606 setup grows superlinearly in rank (QR + Cholesky + SVD of $1024\times\mathrm{rank}$)
CG (Nyström 128) 0.01356
CG (Nyström 256) 0.02617 91% of total is setup
FCG (NPO) 0.03038 setup = checkpoint load only; training cost (216.6 s, npo_training_history.json → wall_time_seconds) is amortized off-line
CG (NPO, plain) 1.679 did not converge

3.3 Caveats — read before extrapolating

  1. $N = 1024$ is far below the crossover scale for everything here. At this size the entire problem fits in L2 cache, spsolve is effectively instantaneous, and the asymptotic arguments that motivate each preconditioner (ILU’s $O(N^{1.5})$-ish fill on 2-D problems, Nyström’s matvec-only access, NPO’s resolution-agnostic amortization) are invisible. Wall-time rankings here should not be extrapolated; iteration counts and spectra are the transferable signal.
  2. Single measurement, no repetition. Times are one perf_counter interval each (run_all.py lines 82–84); sub-millisecond entries carry maybe tens-of-percent jitter. They are reported to characterize regimes (10 µs vs 1 ms per iteration), not for micro-comparisons like Jacobi’s 0.00119 vs plain’s 0.00117.
  3. CPU-only, float64 pipeline, PyTorch forward in float32 internally with float64 in/out (python/neural/npo.py lines 218–227). On a GPU the NPO forward cost collapses and the matvec/forward ratio changes completely.
  4. Dense diagnostics are excluded from the timing story. The exact preconditioned condition numbers (Section 5) come from $O(N^3)$ dense eigensolves in run_nystrom.py and npo_spectrum.py — analysis instruments, feasible only at toy scale, and never part of a solve.

Nyström convergence and the before/after spectrum for the rank-128 sketch:

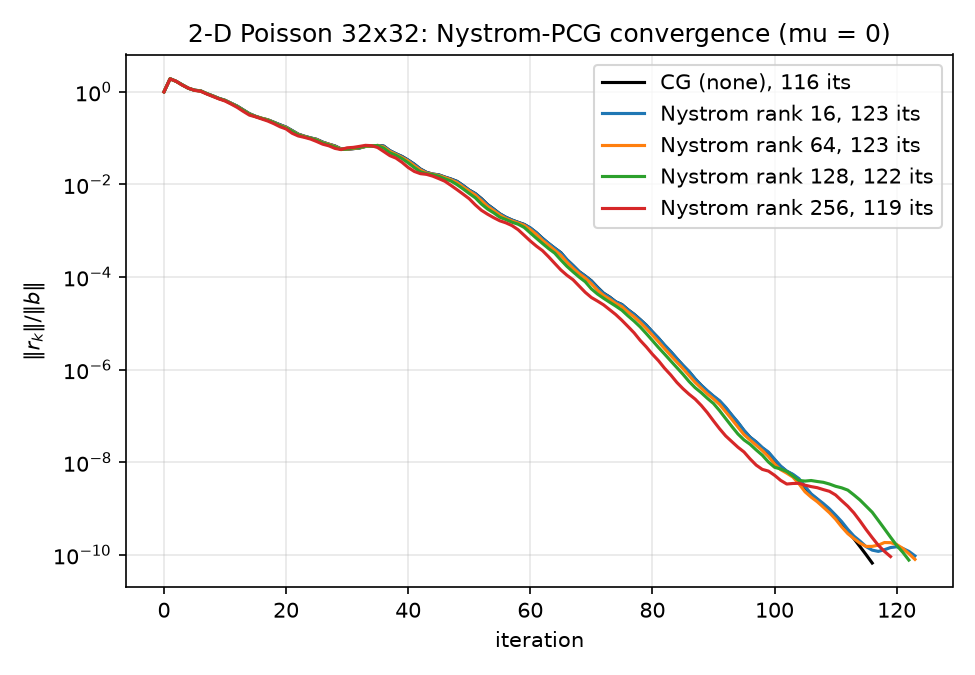

Nyström PCG convergence by rank

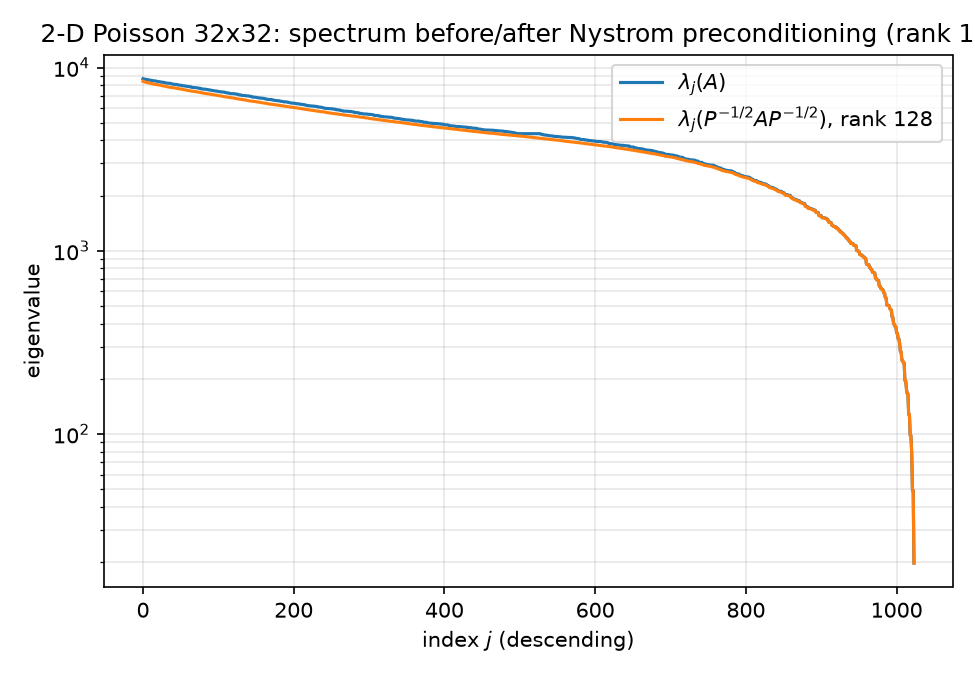

Spectrum before/after Nyström rank-128 preconditioning

The spectrum figure is the whole Nyström story in one panel: the preconditioned curve matches $\lambda_j(A)$ except for a flattened top-128 plateau at $\approx \hat\lambda_{128}$ — deflation from above only, leaving $\kappa$ nearly unchanged because the Laplacian’s upper spectrum is dense (eigenvalue counts grow like the area of a quarter-disk in frequency space; see 02-eigenvalues.md).

NPO linearized-spectrum figure (complex-plane scatter + median-scaled clustering histogram):

NPO linearized spectrum

Mathematica cross-checks (reference implementation in mathematica/poisson_pcg.wls and mathematica/nystrom_pcg.wls, same problem and protocol; the Python pcg is a line-by-line port of the Mathematica PCGSolve):

Mathematica PCG convergence

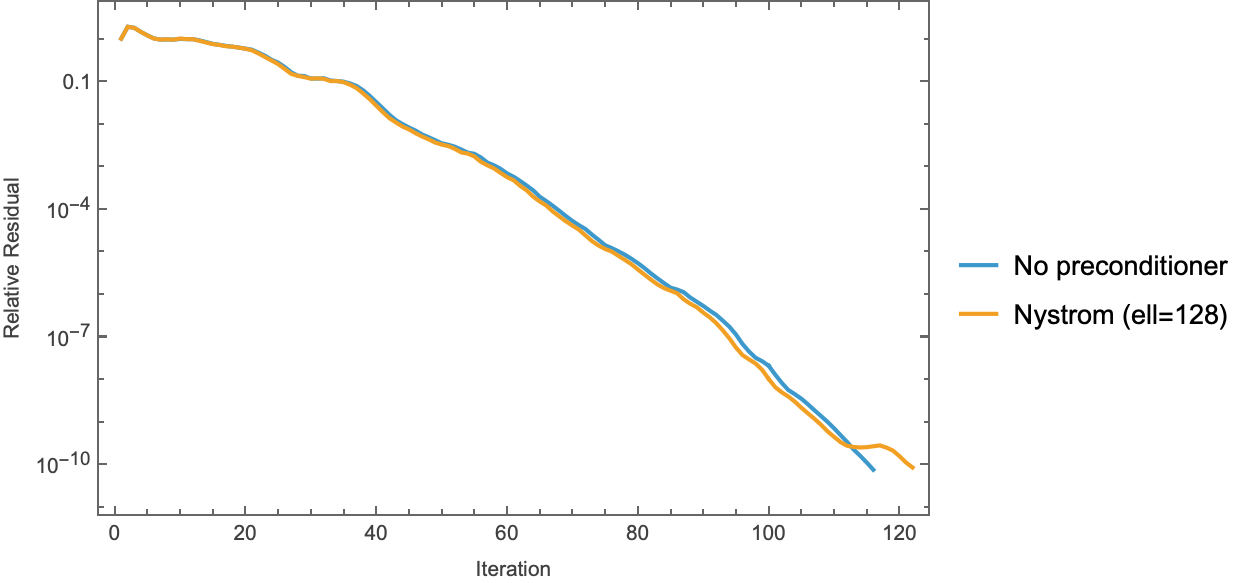

Mathematica Nyström convergence

5. Cross-method spectral comparison

5.1 The κ table

Unpreconditioned, from spectra.json: the computed $\kappa(A) = 440.688560$ agrees with the closed form

\[\kappa(A) = \frac{\lambda_{n,n}}{\lambda_{1,1}} = \frac{\sin^2\!\big(\tfrac{n\pi h}{2}\big)}{\sin^2\!\big(\tfrac{\pi h}{2}\big)} = 440.688560\ldots, \qquad h = \tfrac{1}{n+1},\ n = 32,\]

to all printed digits (asymptote $4(n+1)^2/\pi^2 = 441.355$), and the full 2-D spectrum matches $(\lambda_k + \lambda_l)/h^2$ with $\lambda_k = 2 - 2\cos\frac{k\pi}{n+1}$ to max deviation 2.73e-11 (1-D stencil: 2.22e-15). Scaling: $\kappa$ vs $n$ is exactly $O(n^2)$ — analytic values 32.16, 116.46, 440.69, 1711.66, 6743.68 for $n \in {8,16,32,64,128}$, with $\kappa/n^2 \to 0.412$ at $n=128$, approaching $4/\pi^2 \approx 0.405$:

kappa scaling with n

Preconditioned condition numbers (Nyström values are exact, from dense eigvalsh of $P^{-1/2} A P^{-1/2}$ using the closed-form square root $P^{-1/2} = I + U(\sqrt{s}-1)U^\top$, $s_i = \hat\lambda_\ell/\hat\lambda_i$ — run_nystrom.py lines 39–66; recorded in nystrom.json):

preconditioner $\kappa$ (exact) optimal rank-$\ell$ bound $\lambda_{\ell+1}/\lambda_{\min}$ iterations $\sqrt{\kappa}$-predicted iterations$^\dagger$
none 440.69 — 116 (116, by construction)
Nyström rank 16 439.62 428.91 123 115.9
Nyström rank 64 434.52 395.67 123 115.2
Nyström rank 128 426.58 359.61 122 114.1
Nyström rank 256 407.46 298.41 119 111.5
NPO (FCG) n/a (non-normal); $\vert \lambda\vert $-spread 12.56 — 30 ~19.6 if the spread acted like a κ
ILU not computed (would require forming $M^{-1/2}$) — 5 —
Jacobi (canonical) 440.69 (scalar scaling, provably unchanged) — 116 116

$^\dagger$ scaled as $116\sqrt{\kappa_P/\kappa_A}$, using the classical CG bound $\Vert e_k\Vert _A \le 2\big(\frac{\sqrt\kappa - 1}{\sqrt\kappa + 1}\big)^k \Vert e_0\Vert _A$, i.e. iterations $\propto \sqrt{\kappa}$ at fixed tolerance. (For calibration, the bound itself is loose here: it predicts $\tfrac12\sqrt{440.69}\,\ln(2\cdot10^{10}) \approx 249$ iterations for plain CG vs 116 observed — CG exploits the discrete spectrum’s structure beyond the two-point bound.)

5.2 Reading the table: three different stories

Nyström: correct implementation, adversarial problem. All four sketches reduce the exact κ (440.69 → 439.62…407.46), monotonically in rank, and all sit above their optimal-rank-$\ell$ lower bounds — exactly what arXiv:2110.02820 (Frangella–Tropp–Udell) predicts. But the reductions are marginal by construction of the problem: the Nyström preconditioner deflates the top of the spectrum, so the best any rank-$\ell$ method can achieve is $\kappa = \lambda_{\ell+1}/\lambda_{\min}$, and the 2-D Laplacian’s spectrum decays so slowly from the top that even a perfect rank-256 deflation (a quarter of all modes!) would leave $\kappa = 298$. The paper targets regularized/ridge-type systems with fast spectral decay and small effective dimension $d_{\mathrm{eff}}(\mu)$; the flat-topped Laplacian at $\mu = 0$ is the worst case. On top of that, the randomized sketch slightly perturbs the retained eigenvectors, which at these tiny κ-gains is enough to make the observed iteration counts (119–123) land above plain CG’s 116 rather than at the $\sqrt\kappa$-predicted 111–116. Full derivation in 07-nystrom-preconditioning.md.

NPO: clustering, not symmetry, drives the win. The NPO is not a matrix — it’s a ReLU network — so npo_spectrum.py linearizes it column-by-column ($\tilde M_{:,j} = M_\theta(e_j)$, exact per column because the wrapper normalizes inputs and $\Vert e_j\Vert = 1$) and takes the dense nonsymmetric spectrum of $\tilde M A$. From npo_spectrum.json:

So the NPO’s 116 → 30 comes from squeezing the spectrum of the preconditioned operator into one decade with a strong cluster near the median — despite being nothing like an SPD matrix. The naive $\sqrt{440.69/12.56} \approx 5.9\times$ prediction overestimates the realized $3.87\times$; the gap is exactly the price of complex eigenvalues, non-normality, and the 43% nonlinearity, which FCG’s local orthogonality tolerates but cannot fully exploit. Details in 06-neural-preconditioner.md. (Training context: 400 epochs, 50,465 parameters, 216.6 s wall; total loss 7.504 → 0.301, with the condition/residual/data terms ending at 0.0738/0.1545/0.0730 — npo_training_history.json.)

ILU: the boring winner. No spectral diagnostic was computed for ILU, and none is needed: at $N=1024$ with spilu defaults the incomplete factorization is nearly complete, $M^{-1}A \approx I$, and CG finishes in 5 iterations with the best final residual (6.2e-13) and the best accuracy vs spsolve (8.2e-14) of any method. This is the standing reminder that classical preconditioners are extremely hard to beat at small scale.

6. Sanity checks and anomalies

From results.json → sanity_checks (logic at run_all.py lines 173–204; hard assertions at lines 252–261):

check result
Jacobi iterations == plain-CG iterations, constant-coefficient (116 == 116) PASS (asserted)
Jacobi iterations < plain-CG iterations, variable-coefficient (137 < 771) PASS (asserted)
Nyström iterations strictly decreasing with rank FAIL (report-only)
Nyström iterations non-increasing AND rank-256 < rank-16 PASS (asserted)
every converged solve matches spsolve to 1e-8 rel. error PASS (asserted)

Anomalies, in decreasing order of interest:

  1. Nyström strict monotonicity fails on a tie. Iterations by rank $[16, 64, 128, 256]$ are $[123, 123, 122, 119]$ — ranks 16 and 64 tie at 123 even though rank 64’s exact κ is smaller (434.52 vs 439.62). Iteration counts are integers and the κ difference is 1.2%; a tie is unremarkable. run_all.py deliberately computes and reports the strict check as FAIL while asserting only the non-increasing-with-overall-decrease version (docstring lines 16–24, assertion list line 254–259).
  2. All Nyström variants are worse than plain CG in iterations (119–123 vs 116) despite provably smaller exact κ. Explained in Section 5.2: the achievable κ gain on a flat-top spectrum is tiny, and the sketch’s slight distortion of the retained eigenspace costs more than the deflation buys at this scale. This is a property of the problem–method pairing, not a bug — and it is exactly the “honest expectation” written into the module docstring of python/nystrom.py (lines 13–21) before the experiment was run.
  3. Plain PCG + NPO stalls at $\sim 10^{-5}$ and burns all 2000 iterations (final relres 9.653e-06, relerr 6.65e-06). Deliberate negative control: $M_\theta$ contains ReLUs, so it is not a fixed SPD matrix, Fletcher–Reeves $\beta = r_{k+1}^\top z_{k+1}/r_k^\top z_k$ loses conjugacy, and the search directions degrade once the easily-representable error components are gone. The Notay flexible variant — one changed line, $\beta = z_{k+1}^\top(r_{k+1} - r_k)/z_k^\top r_k$ (python/pcg.py line 134) — converges in 30. This pair is the strongest single argument in the repo for why flexible PCG exists.
  4. The NPO linearization is 57% non-symmetric and 43% non-linear yet works brilliantly under FCG — the spectrum of $\tilde M A$ stays entirely in the right half-plane with a 12.6 modulus spread. Clustering, not SPD structure, is the operative property.
  5. Nothing is broken: all pre-existing result JSONs reproduce exactly under run_all.py (deterministic seeds throughout — GRF seed 42, Nyström seed 0, torch seed 0), and the computed spectra match the analytic formulas at machine-precision levels (2.2e-15 in 1-D; 2.7e-11 in 2-D, consistent with eigenvalues of magnitude ~$10^4$ in float64).

7. What wins where, and why

regime winner why
this exact benchmark, wall time ILU (0.00123 s total) tied with plain CG (0.00117 s) near-exact factorization at toy scale; 5 iterations
this exact benchmark, iterations ILU (5), then FCG-NPO (30) factorization quality; spectral clustering
variable coefficients, near-zero setup budget Jacobi (5.6× iterations, 5.1× wall) rescales the jumping diagonal; costs one vector divide
constant coefficients, near-zero setup budget nothing — plain CG; Jacobi provably identical $\mathrm{diag}(A) = 4/h^2$ constant ⇒ Jacobi ≡ scaled identity
matvec-only access to $A$, fast-decaying/regularized spectrum Nyström (by the theory of arXiv:2110.02820) this benchmark is its worst case; on ridge-type spectra with small $d_{\mathrm{eff}}(\mu)$ it achieves $O(1)$ κ
iteration count is the binding constraint; forward pass amortizable (GPU, many RHS, huge $N$) NPO + FCG 3.87× fewer iterations from a 35× tighter spectrum; per-apply cost is the only obstacle, and it’s an artifact of CPU + $N{=}1024$
a nonlinear/varying preconditioner of any kind flexible PCG, non-negotiable plain PCG demonstrably stalls (2000 iters, $10^{-5}$); FCG costs one extra stored vector

8. Limitations

  1. Toy scale. $N = 1024$ ($32\times32$). Every wall-time conclusion is scale-bound (Section 3.3); ILU’s dominance in particular will erode as fill-in and factorization cost grow on larger 2-D/3-D grids.
  2. Single RHS family, single held-out instance. All solves use one GRF draw (seed 42) from one spectral family ($\alpha=2, \tau=3$). The NPO was trained on the same family (seeds 100–139) — its 30 iterations are an in-distribution generalization result, not a robustness result. No out-of-family RHS (point sources, discontinuous $f$, high-frequency noise) was evaluated.
  3. Single-threaded CPU timings, one repetition, float32 network forward inside a float64 solve. No GPU numbers anywhere.
  4. No multigrid baseline. Geometric multigrid is the asymptotically optimal ($O(N)$, κ-independent) solver for exactly this operator; its absence flatters every method in the table. The NPO paper doesn’t fill this gap either: it blends AMG principles into the NAMG architecture (its Sec. 3.4) and uses AMG-preconditioned solves only to generate training data (its Sec. 5.1.2), but its benchmarked baselines are Jacobi/Gauss–Seidel/SOR and neural models — a head-to-head NAMG-vs-multigrid comparison is missing both there and here.
  5. Nyström evaluated only at $\mu = 0$ on an unregularized Laplacian — the regime its theory explicitly does not target. A fair showcase would add $\mu > 0$ (or a kernel/ridge system) where $d_{\mathrm{eff}}(\mu) \ll N$.
  6. NPO trained and evaluated at a single resolution ($n = 32$), although the architecture (learned coarse queries + coordinate channels, python/neural/npo.py lines 81–120) is resolution-agnostic by design.
  7. ILU at spilu defaults only — no drop_tol/fill_factor sweep, so the ILU column shows “essentially exact LU” behavior rather than the fill/quality tradeoff a practitioner would tune.

9. Next steps

  1. Scale $n$: 64 → 128 → 256. κ grows as $\sim 0.41\,n^2$ (measured, spectra.json), so plain CG should scale as $\sim\sqrt\kappa \propto n$ while ILU setup cost and fill grow — find the crossover. Rerun the NPO unretrained at higher $n$ to test the resolution-agnosticism claim of arXiv:2502.01337.
  2. Add a geometric multigrid baseline (V-cycle, weighted-Jacobi smoother) — the reference point both the classical and neural columns need. Also usable as a preconditioner inside pcg for a direct MG-PCG vs NPO-FCG match.
  3. Train the NPO across resolutions and coefficient fields (mixed $n \in {16,32,64}$ batches; variable-coefficient operators with random contrast) and evaluate on the variable-coefficient problem, where the classical cheap option (Jacobi) still leaves 137 iterations on the table.
  4. Give Nyström a fair fight: the same pipeline at $\mu > 0$ (e.g. $A + \mu I$ with $\mu$ sweeping decades) or on a ridge-regression normal-equations matrix, where $d_{\mathrm{eff}}(\mu)$ is small and Theorem 5.1 of arXiv:2110.02820 predicts $\mathbb{E}[\kappa] < 28$ at $\ell = 2\lceil 1.5\,d_{\mathrm{eff}}\rceil + 1$.
  5. Timing hygiene at scale: repeat solves for confidence intervals, add GPU timings for the NPO forward, and batch multiple RHS through one forward to measure amortized per-solve cost.
  6. RHS robustness sweep: out-of-family right-hand sides against the trained NPO to bound the in-distribution advantage measured here.

Every solve in this report ends within 3.1e-11 of the direct solution or is explicitly flagged as non-converged — the ledger is clean, and the most informative entries are the ones that lost on purpose: knowing precisely why Nyström loses on a flat-top spectrum and why plain PCG chokes on a ReLU preconditioner is the transferable result; the toy-scale wall-clock rankings are not.
