The Trace-Maximal Orthogonal Completion

A closed form for maximizing $\operatorname{Tr} W$ over orthogonal $W$ with $XW = Y$ — a follow-up to A. Kato's answer on Mathematica StackExchange.

The problem: given $n \times d$ matrices $X, Y$ with orthonormal rows ($n \le d$), find an orthogonal $W$ with $XW = Y$ and $\operatorname{Tr} W$ as large as possible. Kato's answer reduced it to a small dense subproblem and solved that with an eigendecomposition. This note pushes the same idea to its end point: the whole problem has a one-SVD closed form, the geometry behind it fits in two pictures, and exploiting it brings the cost down to $O(dn^2)$ for the solve.

1 · From trace to distance

For orthogonal $W$,

$$\lVert W - I \rVert_F^2 \;=\; 2d - 2\operatorname{Tr} W,$$

so maximizing the trace is the same as finding the feasible orthogonal matrix closest to the identity: a Procrustes problem with a linear constraint. Everything that follows is a consequence of this one reformulation.

2 · The feasible set has exactly one knob

Let $U$ and $V$ be orthonormal bases of the row null spaces of $X$ and $Y$. If $W$ is feasible, the rows of $UW$ are orthonormal and orthogonal to the rows of $Y$ — because $UWY^\top = UWW^\top X^\top = UX^\top = 0$ — so $UW = QV$ for some orthogonal $Q$, and every feasible $W$ is

Blue blocks are pinned by the data; the orange block $Q \in O(d-n)$ is the entire feasible set. The first term $X^\top Y$ maps row-space to row-space; the second maps null space to null space.

The objective splits accordingly: $\operatorname{Tr} W = \operatorname{Tr}(X^\top Y) + \operatorname{Tr}(Q\,VU^\top)$. By von Neumann's trace inequality, $\operatorname{Tr}(QM) \le \sum_i \sigma_i(M)$ over orthogonal $Q$, with equality at an orthogonal polar factor of $M^\top$: if $VU^\top = E\Sigma F^\top$, take $Q = FE^\top$. (This replaces the Eigensystem + Inverse + matrix-square-root route — one SVD, no invertibility assumption, and orthogonality error around $10^{-15}$ instead of $10^{-13}$.)

orthogonalSolverSVD[X_?MatrixQ, Y_?MatrixQ] := Module[{U, V, e, s, f},
   U = NullSpace[X]; V = NullSpace[Y];
   If[U === {}, Return[Transpose[X] . Y]];   (* n == d: W is determined *)
   {e, s, f} = SingularValueDecomposition[V . Transpose[U]];
   Transpose[X] . Y + Transpose[U] . f . Transpose[e] . V];

3 · All the action lives in a ≤ 2n-dimensional subspace

Every optimal $W$ fixes the orthogonal complement of $S = \operatorname{rowspan}(X) + \operatorname{rowspan}(Y)$ pointwise: an optimal $Q$ aligns the two null spaces along their principal vectors, and $S^\perp$ lies in both. In a basis adapted to $S$, the optimal $W$ is block diagonal —

The $d$-dimensional problem collapses onto $S$: solve a copy of itself in dimension $\le 2n$, embed back, and the rest of space rides along as the identity.

orthogonalSolverFast[X_?MatrixQ, Y_?MatrixQ] := Module[{d, B, Ws},
   d = Last@Dimensions@X;
   B = DeleteCases[Orthogonalize@Join[X, Y], v_ /; Norm[v] < 10^-8];
   Ws = orthogonalSolverSVD[X . Transpose[B], Y . Transpose[B]];
   IdentityMatrix[d] + Transpose[B] . (Ws - IdentityMatrix@Length@B) . B];

The solve is $O(dn^2)$; only assembling the dense $d \times d$ answer costs $O(d^2 n)$. If $d$ is truly large, keep $W$ in the factored form $I + B^\top(W_s - I)B$ and never materialize it.

4 · The n = 1 case, and a small surprise

For a single pair $(x, y)$ with $c = x \cdot y$, the optimal trace is $d - 2 + 2\max(c, 0)$, and the optimum depends on the sign of $c$:

For $c \ge 0$ the optimum is the transpose of the Rodrigues rotation $I + K + K^2/(1+c)$, $K = yx^\top - xy^\top$, turning only in $\operatorname{span}\{x,y\}$. For $c < 0$ a reflection of that plane scores higher — the rotation is only optimal among proper rotations. (A detailed derivation of the rotation formula is in this companion note.)

The same applies in general: the maximizer over $O(d)$ frequently has $\det W = -1$ — the question's own SeedRandom[1] instance is an example. If your application needs a proper rotation, check the result: when $\det W = -1$, replace $FE^\top$ by $F\,\mathrm{diag}(1,\ldots,1,-1)\,E^\top$ (a Kabsch-style flip of the smallest singular direction), at a cost of exactly $2\sigma_{\min}(VU^\top)$ in trace.

5 · Benchmarks

All three closed-form solvers agree to $10^{-14}$ in trace; the differences are speed and constraint accuracy. Warmed-up timings (RepeatedTiming, M-series laptop, $n = 10$):

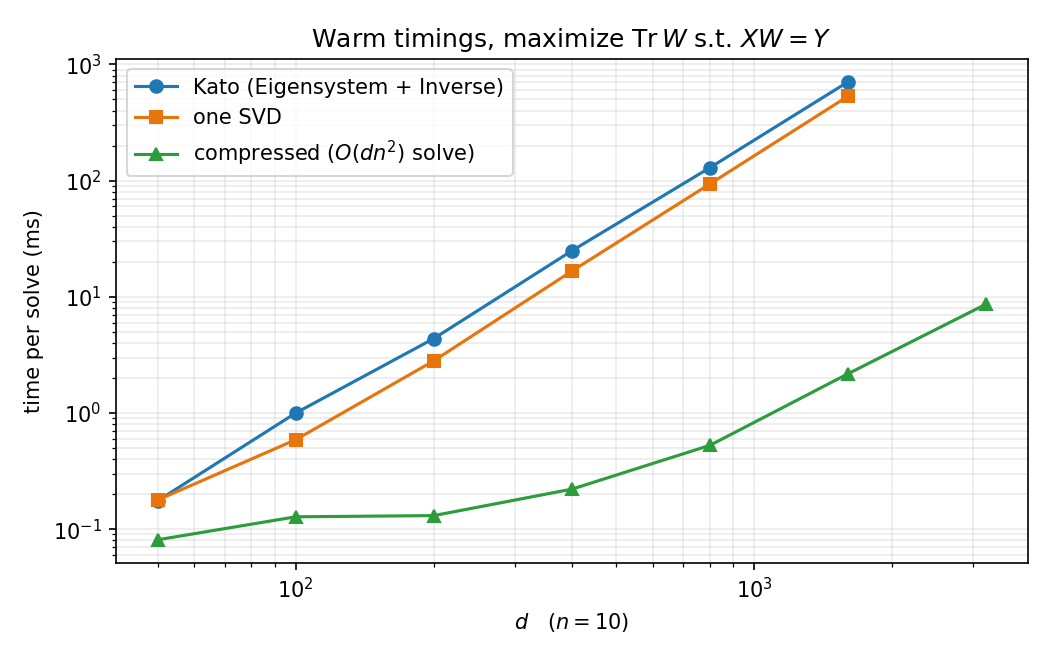

Log-log timing comparison of the three solvers as d grows — Kato's solver and the one-SVD variant both do $O(d^3)$ work in the null-space computation; the compressed solver's solve is $O(dn^2)$ and its dense assembly $O(d^2 n)$, giving the shallower slope.

solver, (n, d)	Tr	\|XW − Y\|	\|W⊤W − I\|	time
Kato (10, 100)	82.78517434417	8.5e-16	1.1e-13	1.1 ms
one SVD (10, 100)	82.78517434417	9.3e-16	4.1e-15	0.6 ms
compressed (10, 100)	82.78517434417	1.1e-15	2.8e-15	0.12 ms
compressed (10, 2000)	1980.55	2.7e-15	4.8e-15	3.3 ms

A historical footnote: on the question's original SeedRandom[1] instance, Minimize reports 0.82896 — slightly above the true optimum 0.828952. Its answer violates orthogonality by $1.7 \times 10^{-5}$, which buys the extra trace; the closed form is exactly feasible.

6 · Everything in one block

(* maximize Tr[W] over orthogonal W subject to X.W == Y;
   X, Y: n x d with orthonormal rows, machine precision *)

orthogonalSolverSVD[X_?MatrixQ, Y_?MatrixQ] := Module[{U, V, e, s, f},
   U = NullSpace[X]; V = NullSpace[Y];
   If[U === {}, Return[Transpose[X] . Y]];
   {e, s, f} = SingularValueDecomposition[V . Transpose[U]];
   Transpose[X] . Y + Transpose[U] . f . Transpose[e] . V];

orthogonalSolverFast[X_?MatrixQ, Y_?MatrixQ] := Module[{d, B, Ws},
   d = Last@Dimensions@X;
   B = DeleteCases[Orthogonalize@Join[X, Y], v_ /; Norm[v] < 10^-8];
   Ws = orthogonalSolverSVD[X . Transpose[B], Y . Transpose[B]];
   IdentityMatrix[d] + Transpose[B] . (Ws - IdentityMatrix@Length@B) . B];

(* test on the question's instance *)
SeedRandom[1];
{n, d} = {2, 4};
W0 = RandomVariate@CircularRealMatrixDistribution@d;
X = Orthogonalize@RandomVariate[NormalDistribution[], {n, d}];
Y = X . W0;
W = orthogonalSolverSVD[X, Y];
{Tr[W], Norm[X . W - Y], Norm[Transpose[W] . W - IdentityMatrix[d]]}
(* {0.828952, 3.5*10^-16, 8.0*10^-16} *)
