1. The definition

The coloured crystals of catalogue D classify colourings by an abstract invariant — the colour symmetry group C(𝒫̂), the group of pairs (s, θ) of a symmetry of the underlying pattern and a compatible permutation of the colours. Section 8.3 of Grünbaum and Shephard's Tilings and Patterns classifies the coloured pictures themselves. Their definition, shortened but faithful: two k-chromatic patterns 𝒫̂₁ and 𝒫̂₂ are of the same k-colour pattern type if — possibly after an appropriate renaming (permutation) of the colours in one of the patterns — they have the same colour symmetry groups, the same stabilisers of their coloured motifs (the induced colour groups), and the same set of coloured-motif-transitive subgroups of their colour symmetry groups. Equivalently, in the compatible-bijection form that runs through their Chapter 7: 𝒫̂₁ and 𝒫̂₂ are of the same type if, after renaming colours, there is a one-to-one colour-preserving mapping Ψ from the coloured copies of the motif of 𝒫̂₁ onto those of 𝒫̂₂ such that Ψ is compatible with the underlying group S_C(𝒫̂₁) and Ψ⁻¹ is compatible with S_C(𝒫̂₂).

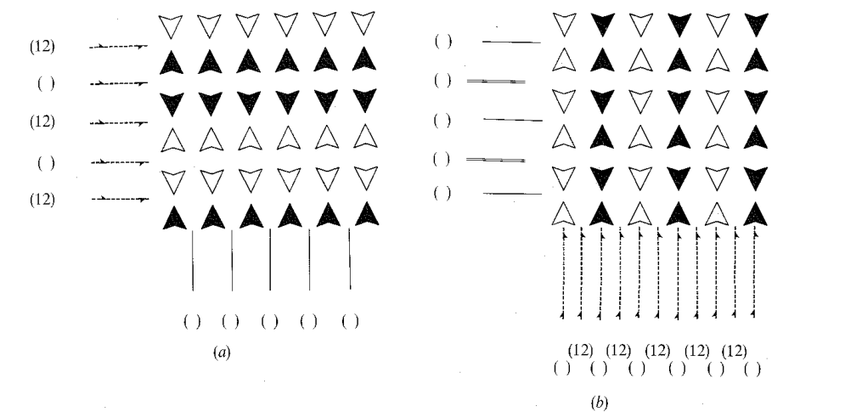

This is strictly finer than the group-level classification of catalogue D, and none of the three clauses is redundant. The colour group cannot see how it sits on the picture; adding the induced group does not help either; Grünbaum & Shephard's Figure 8.3.2 is the canonical witness that the two together are still not enough:

Where do the types beyond the colour groups come from? From underlying patterns that are non-primitive — those whose motif has a non-trivial stabiliser. Over a primitive pattern the induced group is trivial and the colour group determines the type, so the plates of Figures 8.2.2 and 8.2.3 — one perfectly coloured primitive pattern per colour group — both define the 46 + 23 colour groups of catalogue D and exhaust the primitive pattern types. Every further type lives over a non-primitive pattern, where the induced colour group is non-trivial and one colour group can organise several inequivalent pictures: the underlying pattern PP15 of the figure above alone carries five 2-colour pattern types (PP15[2]₁, PP15[2]₁*, PP15[2]₂, PP15[2]₃, PP15[2]₄) over only four colour groups. Grünbaum & Shephard enumerate the non-primitive types by a merging procedure — move the coloured copies of the motif, keeping the colour symmetry group, until same-coloured copies merge — and record the result as two displayed statements:

2. Two colours — 88 periodic types

Every one of the 88 now has a full entry — plate, presentation, marked signature, book crops — on Two-Color Patterns; the pattern-type symbols below link there.

Rows follow the printed reading order of the plates; each row carries a stable anchor, and the entries of catalogue D deep-link into them. The pattern-type symbol is Grünbaum & Shephard's: the underlying pattern type (PPn in the numbering of their Chapter 5), the number of colours in brackets, and where needed a subscript matching the subscript of the colour group. The colour-group column links to the corresponding coloured crystal of catalogue D; the plate column gives figure and book page.

Primitive types — the colour groups drawn

One type per colour group: the Figure 8.2.2 panel that draws the group is the type's canonical picture.

Non-primitive types

The 42 types of Figure 8.3.5. The star on PP15[2]₁* is Grünbaum & Shephard's mark for a second, inequivalent type over the same underlying pattern with the same colour group as PP15[2]₁ — the two differ in how the induced group sits over the motifs, exactly the phenomenon of their Figure 8.3.1(c).

3. Three colours — 59 periodic types

The three-colour plates — first published, the book notes, in Grünbaum & Shephard [1983b] — occupy Figure 8.2.3 (the 23 primitive types) and Figure 8.3.6 (the 36 non-primitive ones). Two printing slips are corrected silently below: Table 8.2.3 prints the symbol of p2[3] as "p2[2]", and the Figure 8.2.3 panel of PP23[3]₂ is labelled p31m[3]₃ for p31m[3]₂.

Primitive types — the colour groups drawn

Non-primitive types

The 36 types of Figure 8.3.6, including the two starred types PP15[3]* and PP19[3]* — second inequivalent colourings of PP15 and PP19 with the colour groups pmm[3] and cmm[3] already used by PP15[3] and PP19[3]. Without them the count would be 34, not the 36 of the figure's caption.

4. Beyond three colours

For k ≥ 4 the primitive half of the classification continues without incident: primitive k-colour pattern types are exactly k-colour groups, and catalogue D counts and draws them — 96 four-colour, 14 five-colour and 90 six-colour groups. It is the non-primitive half that is missing. Nothing plays the role of Figures 8.3.5 and 8.3.6 for four colours, and the total number of k-colour pattern types is unknown for every k ≥ 4. Whoever repeats Grünbaum & Shephard's merging procedure over the 96 four-colour groups settles the first open case.
